GUI Basic Tutorial

Overview

This tutorial demonstrates the use of Coreform Cubit to create and mesh a brick with a through-hole. The primary steps in performing this task are:

• Creating the geometry
• Setting the interval sizes and meshing schemes
• Meshing the geometry
• Specifying the boundary conditions
• Exporting the mesh

The geometry for this tutorial is a brick with a cylindrical hole in the center, shown in the figure below. This figure also shows the curve and surface identification (ID) numbers, which are referenced in the command lines options shown with each step. The final meshed body is shown in the next figure.

Geometry for Brick with Cylindrical Hole

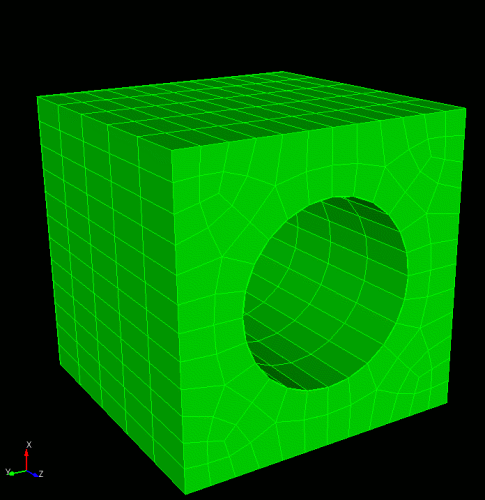

Generated Mesh for Brick with Cylindrical Hole
